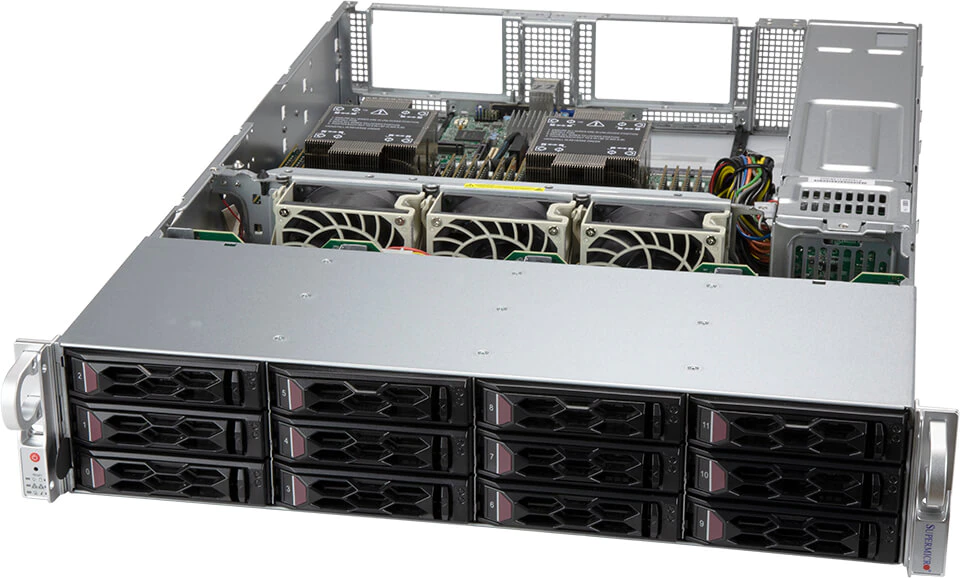

SYS-620C-TN12R - 2U - CloudDC Server
zzgl. MwSt. zzgl. Versandkosten
Lieferzeit 3-4 Wochen
- Artikel-Nr.: SYS-620C-TN12R
sysGen/SUPERMICRO SYS-620C-TN12R, includes:
Mainboard Super H12SSW-AN6 / 2U Rackmount CSE-LA26TS-R920AWP
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).NIC requirement can either be AIOM or PCIe card.
Applications
- Web Server, Firewall Application
- Data Center Optimized, Value IaaS
- Cloud Computing, Compact Server
- DNS & Gateway Servers, Firewall Application
- CDN, Edge Nodes
Features

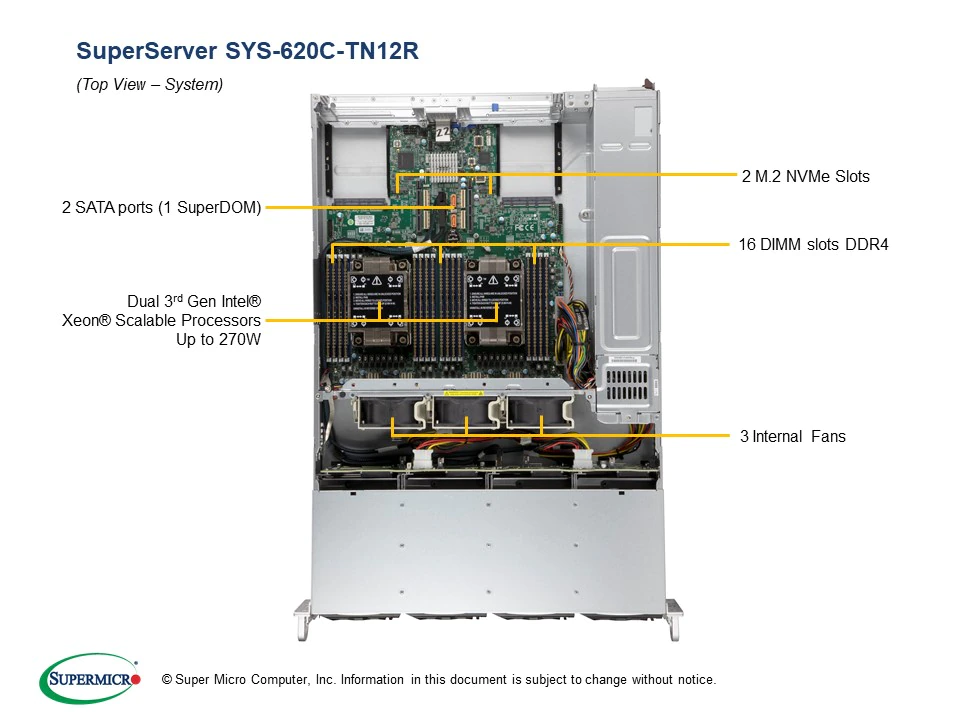

- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM

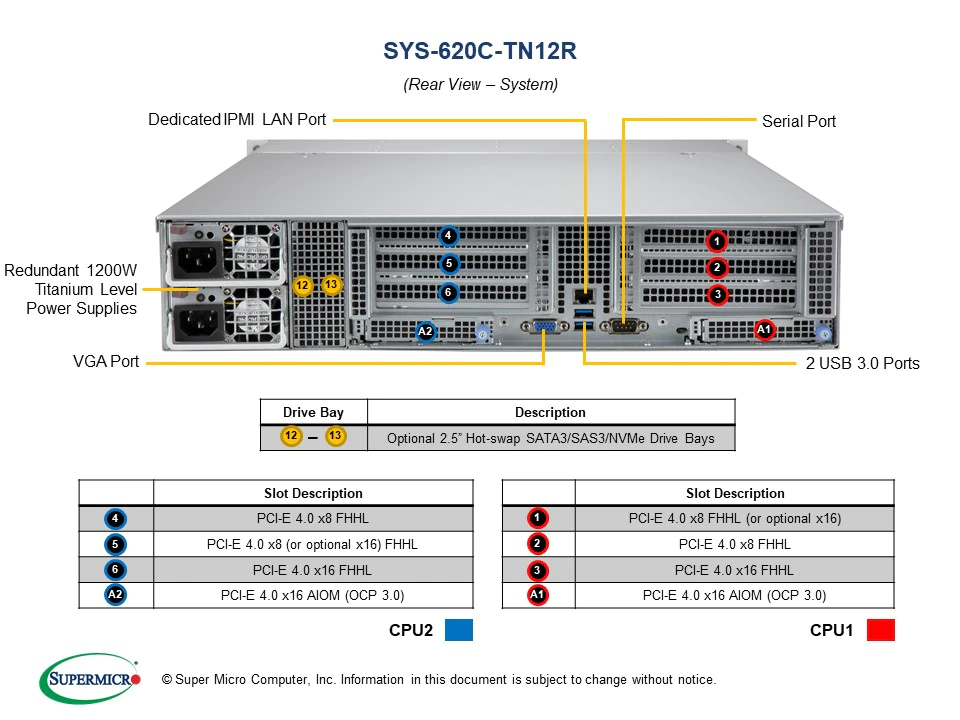

- 4 PCI-E 4.0 x16 FHHL (OR) 2 PCI-E 4.0 x16 FHHL and 4 PCI-E 4.0 x8 FHHL;
2 PCI-E 4.0 x16 AIOM (OCP 3.0);

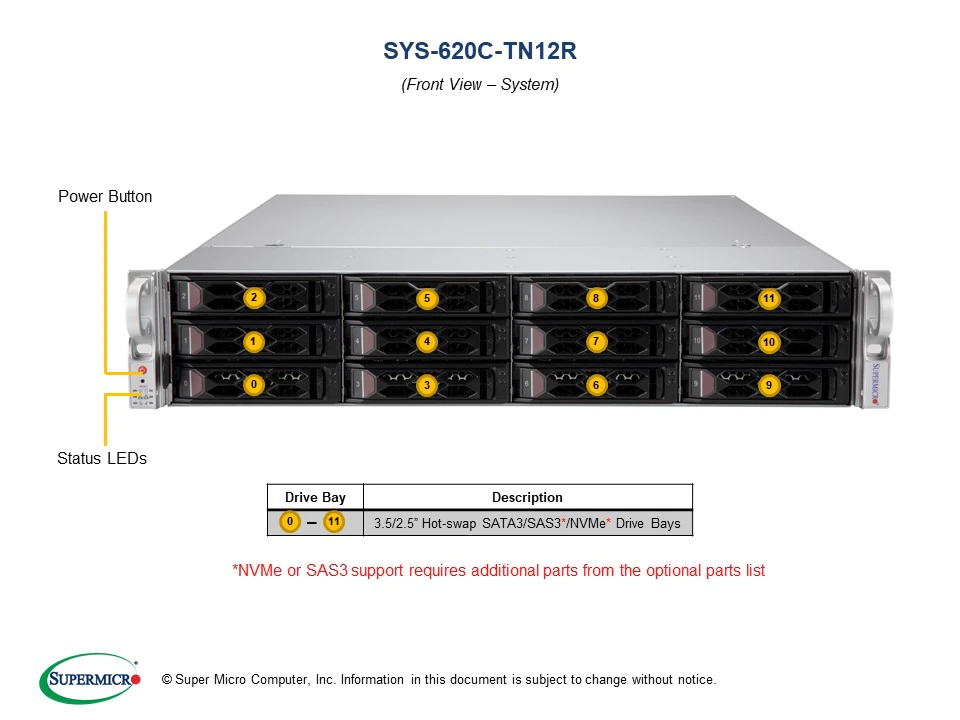

2 PCI-E 3.0 x2 NVMe M.2 - 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
- 3 heavy duty fans with optimal fan speed control, 1 air shroud
- 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
Anwendungen: | Cloud Computing, HPC, Virtualization |
Gehäuse Tiefe: | 25.5" (648mm) |
CPU Sockel: | Dual Socket |
CPU-Typ: | Intel Xeon Scalable Ice Lake (3.Gen) |
DIMM Steckplätze: | 16 DIMMs |
Speicher Formfaktor: | 2.5", 3.5", M.2 |
Formfaktor: | 2U |
GPU-Typ: | PCIe |
Max. GPU Anzahl: | 4 GPUs |
On-Board Netzwerk: | N/A |
PCIe Steckplätze: | 6 PCIe Steckplätze |
Redundantes Netzteil: | Redundantes Netzteil inkl. |
Fernverwaltung: | Fernverwaltung inkl. |
Besondere Eigenschaften: | Complete System Only |
Speicherschnittstelle: | NVMe (optional), SAS (optional), SATA (native) |
Systemtyp: | Super Server |
Anwendungen: | Cloud Computing, HPC, Virtualization |
Gehäuse Tiefe: | 25.5" (648mm) |
CPU Sockel: | Dual Socket |
CPU-Typ: | Intel Xeon Scalable Ice Lake (3.Gen) |
DIMM Steckplätze: | 16 DIMMs |
Speicher Formfaktor: | 2.5", 3.5", M.2 |
Formfaktor: | 2U |
GPU-Typ: | PCIe |
Max. GPU Anzahl: | 4 GPUs |
On-Board Netzwerk: | N/A |
PCIe Steckplätze: | 6 PCIe Steckplätze |
Redundantes Netzteil: | Redundantes Netzteil inkl. |
Fernverwaltung: | Fernverwaltung inkl. |
Besondere Eigenschaften: | Complete System Only |
Speicherschnittstelle: | NVMe (optional), SAS (optional), SATA (native) |
Systemtyp: | Super Server |
