CSE-946ED-R2KJBOD
Price On Request
Content: 1 Stück
Prices plus VAT plus shipping costs
Delivery time 3-4 Weeks
- Order number: CSE-946ED-R2KJBOD
sysGen/SUPERMICRO CSE-946ED-R2KJBOD , includes: Simply Double High Density JBOD Storage... more
Product information "CSE-946ED-R2KJBOD"
sysGen/SUPERMICRO CSE-946ED-R2KJBOD, includes:

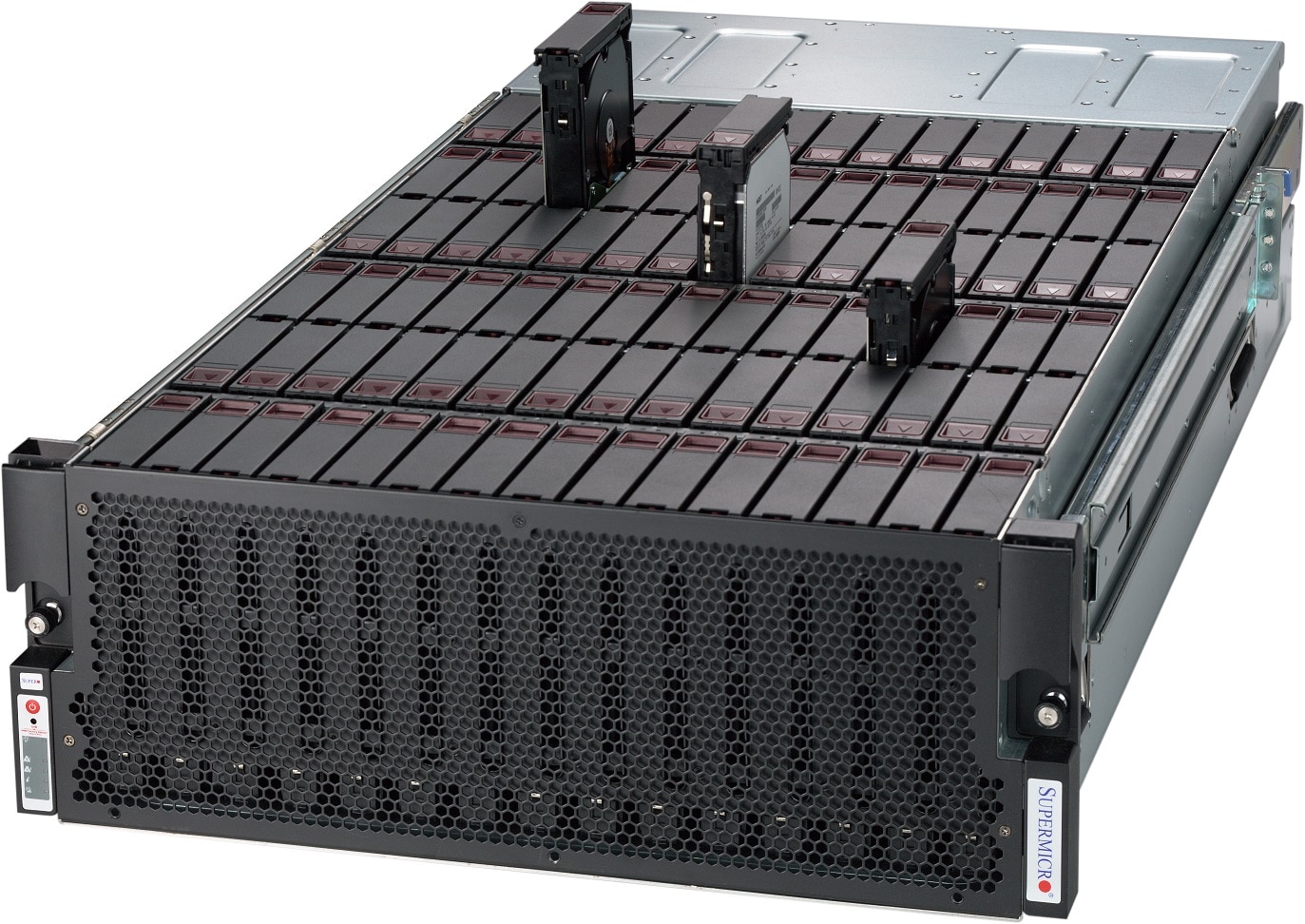

- Simply Double High Density JBOD Storage Enclosure
The JBOD supports the following:
- Extreme High Density and High Capacity Dual-path Storage Enclosure
- Support 90 x 3.5" or 2.5" Top Loading SAS3 12Gb/s Hot-swappable HDDs

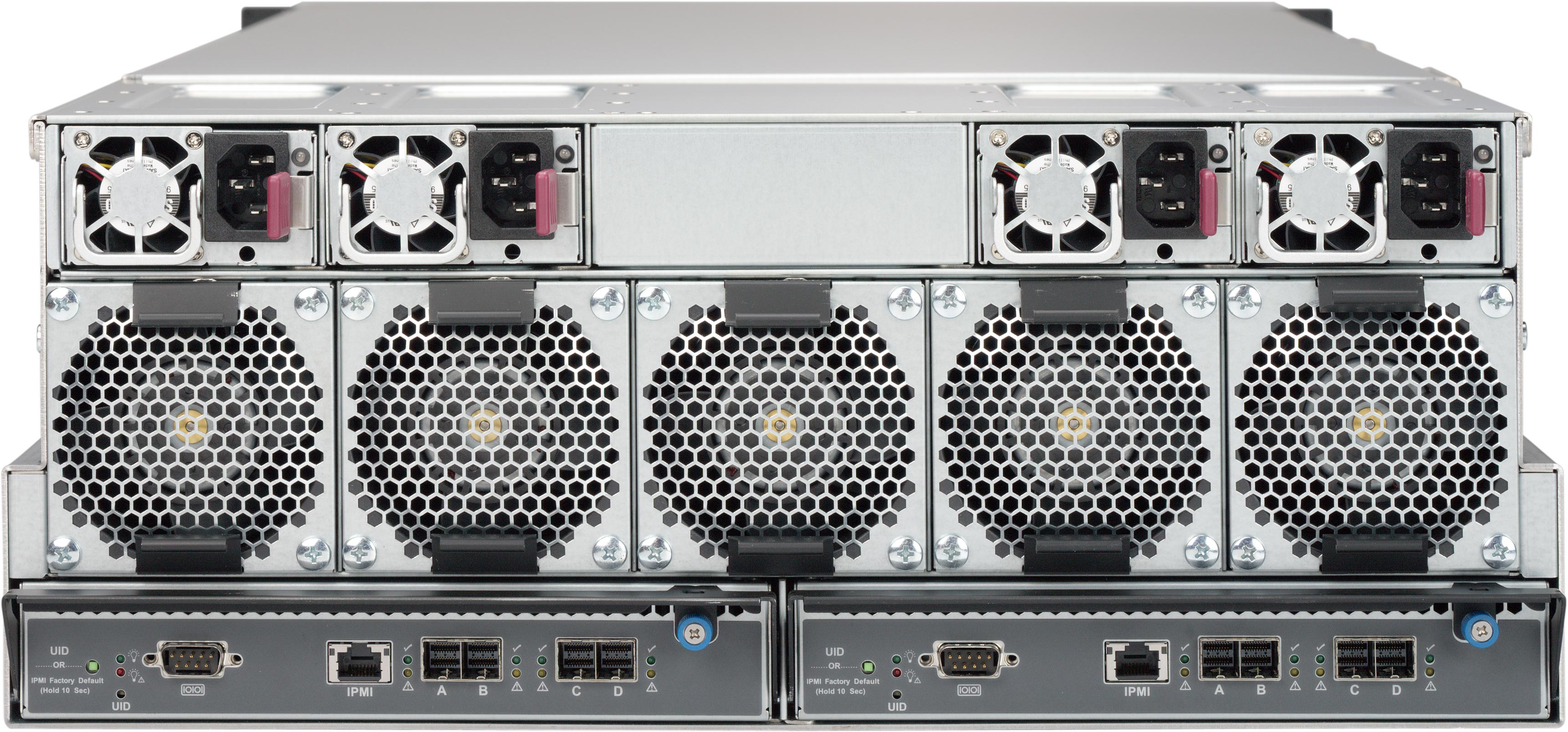

- Hot-swappable Expanders with redundant BMC for Remote System Power on/off and monitoring
- Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
- High Performance up to 20+ GB/s data transfer rate
- Tool-less HDD tray with HDD LED indicator
- SCSI Enclosure Services (SES 3.0) compliant
- Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
- Slide Rails and Cable Management Arm included
- Qualified SAS HBA / controller:
AOC-SAS3-9300-8E - 12Gb/s 2-external ports SAS3 HBA
AOC-SAS3-9380-8E - 12Gb/s 2-external ports SAS3 RAID Controller
| Applications: | Backup Storage, Big Data, Cloud Computing, Data Center |
| Case Depth: | 35.66" (906 mm) |
| Drive Bays Form Factor: | 2.5", 3.5" |
| SSDs/HDDs: | 90 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | SAS (native), SATA (native) |
| System Type: | JBOD |
Related links to "CSE-946ED-R2KJBOD"
Properties: "CSE-946ED-R2KJBOD"
| Applications: | Backup Storage, Big Data, Cloud Computing, Data Center |
| Case Depth: | 35.66" (906 mm) |
| Drive Bays Form Factor: | 2.5", 3.5" |
| SSDs/HDDs: | 90 |
| Form Factor: | 4U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Storage Interface: | SAS (native), SATA (native) |
| System Type: | JBOD |
